WW-C04 · Aluminum commercial wheels

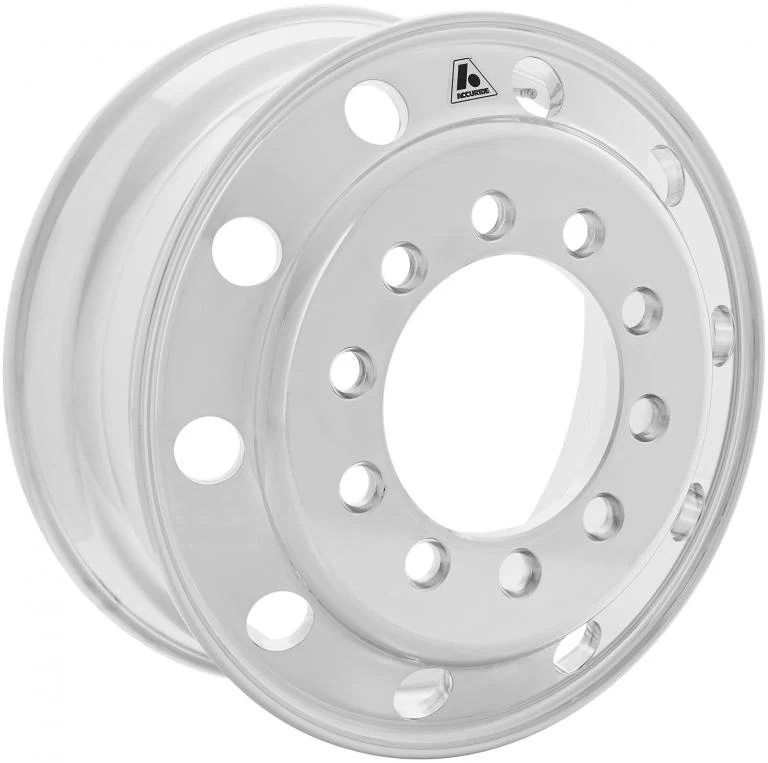

Stud-Piloted Aluminum Dual Wheel
Legacy fleets using stud-piloted dual-wheel systems.
| Wheel / rim size | 22.5 x 8.25 in (571.5 x 209.55 mm) |
|---|---|
| Bolt pattern | 10 x 11.250 in (10 x 285.75 mm) |
| Pilot bore | 8.72 in (221.488 mm) |
| Nut system | Double-cap nut |
Selection configuration; sample, load rating and fitment approval are required before order.
Construction & Material
Aluminum wheel with stud-piloted ball-seat mounting.
Options
Inboard/outboard polish; matching nut seat and stud system.
Size options
Dimensions and mounting interface are confirmed against the approved model drawing.
Procurement Value
Clearly defined legacy interfaces support dedicated replacement inventory.
Mounting & Selection
Hub/stud pilot, bolt circle, bore, disc thickness, outset/inset, axle position, required wheel load and inflation pressure.
Standards & Qualification
FMVSS 120 applicability and rim markings; SAE J267 test program as applicable. No certification is asserted.
Packing & Delivery
Actual packed dimensions, gross mass and stack limit to be confirmed. Protect rim edges and finished surfaces. Matched multi-piece components must be secured and identified together.
Model Approval
Confirm the quoted model, production drawing, load and fitment evidence before ordering. Reference specifications are not a supply guarantee.
